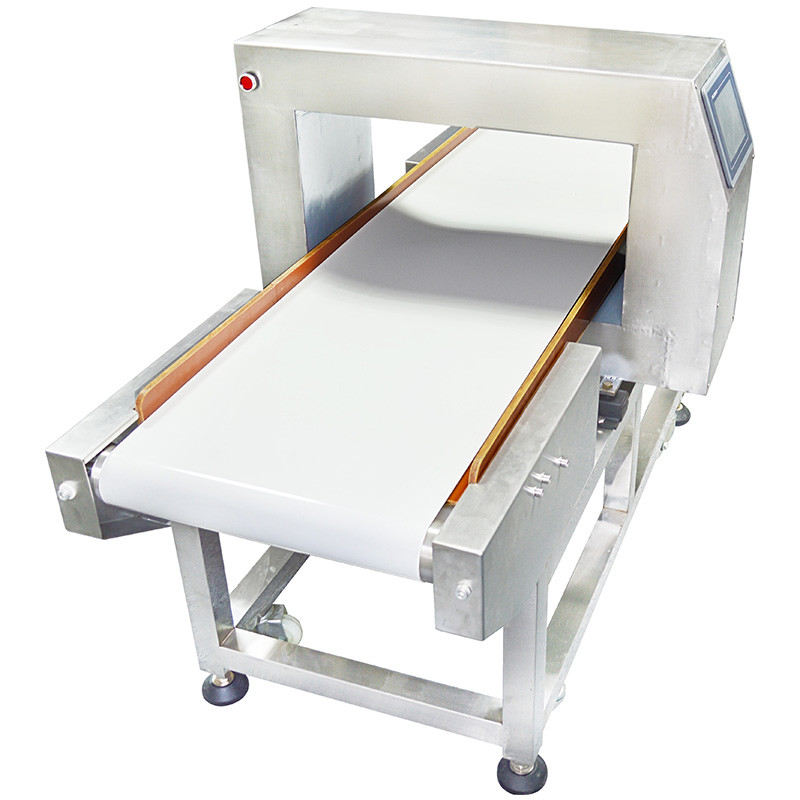

Metal Detector Machines with sensitivity of 1.00 mm Fe and CE certificate
Product Introduction:
1. Dual-loop circuit design, it can detect ferrous and non-ferrous and other metal objects,
the sensitivity can be adjusted separately, with memory function can be stored 10 kinds of test material.
2. Detector with audible and visual alarm, and automatically exclude, stop, rewind
3. functions, user-friendly menu, easy to operate touch screen. Machine made of stainless steel,
anti-corrosion, no rust, easy to clean up.
4. Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.
5. Detection accuracy over the corresponding provisions of HACCP system Detect indicators.
Quick detail:
| Detection method: | Magnetic induction detection |
| Display way: | 6 inches of digital circuit touch blue LCD display |
| Detection width : | 45-80 cm, Customized |
| Detection height: | 10-50cm Customized |
| Sensitivity adjustable: | 0-9 level |
| Detection sensitivity: | 0.8mm-3.0mm iron ball, 1.5mm-5.0mm Stainless steel |
| Alarm mode: | The buzzer alarm, the motor automatically stop |
| Transfer speed: | 25 meter / mins |
| Power: | 100-265VAC, 50-60Hz |
| Size: | (150-170)(L)*(80-90)(W)*(85-120)(H)cm |
Metal Detector Parameters :
| Model | Detecting height(cm) | Detecting width(cm) | Sensitivity(mm) | Belt Size(cm) |
| Fe | SUS | Length | Width |
| MCD-F500QD-09 | 6 | 30 | Φ0.6 | Φ1.2 | 258 | 28 |
| MCD-F500QD-12 | 9 | 30 | Φ0.7 | Φ1.5 | 258 | 28 |
| MCD-F500QD-15 | 12 | 40 | Φ0.8 | Φ1.5-Φ2.0 | 258 | 38 |
| MCD-F500QD-20 | 17 | 40 | Φ1.0-Φ1.25 | Φ2.0-Φ2.5 | 258 | 38 |
| MCD-F500QD-25 | 22 | 50 | Φ1.5-Φ2.0 | Φ3.0-Φ4.0 | 330 | 48 |
| MCD-F500QD-30 | 27 | 50 | Φ2.5-Φ3.0 | Φ5.0-Φ6.0 | 330 | 48 |
| MCD-F500QD-35 | 32 | 60 | Φ3.0-Φ3.5 | Φ6.0-Φ7.0 | 330 | 58 |
| MCD-F500QD-40 | 37 | 60 | Φ3.5-Φ4.0 | Φ7.0-Φ8.0 | 330 | 58 |
| MCD-F500QD-45 | 42 | 70 | Φ4.0-Φ4.5 | Φ8.0-Φ9.0 | 330 | 68 |
| MCD-F500QD-50 | 47 | 70 | Φ4.5-Φ5.0 | Φ9.0-Φ10.0 | 390 | 68 |
| MCD-F500QD-55 | 52 | 80 | Φ5.0-Φ5.5 | Φ10.0-Φ11.0 | 390 | 78 |
| MCD-F500QD-60 | 57 | 80 | Φ5.5-Φ6.0 | Φ11.0-Φ12.0 | 390 | 78 |
| MCD-F500QD-65 | 62 | 90 | Φ6.0-Φ6.5 | Φ12.0-Φ13.0 | 390 | 88 |
| MCD-F500QD-70 | 67 | 90 | Φ6.5-Φ7.0 | Φ13.0-Φ14.0 | 390 | 88 |
| MCD-F500QD-75 | 72 | 100 | Φ7.0-Φ7.5 | Φ14.0-Φ15.0 | 450 | 98 |
| MCD-F500QD-80 | 77 | 100 | Φ7.5-Φ8.0 | Φ15.0-Φ16.0 | 450 | 98 |
| MCD-F500QD-85 | 82 | 110 | Φ8.0-Φ8.5 | Φ16.0-Φ17.0 | 450 | 108 |
| MCD-F500QD-90 | 87 | 110 | Φ8.5-Φ9.0 | Φ17.0-Φ18.0 | 450 | 108 |
| MCD-F500QD-95 | 92 | 120 | Φ9.0-Φ9.5 | Φ18.0-Φ19.0 | 450 | 118 |
| MCD-F500QD-100 | 97 | 120 | Φ9.5-Φ10.0 | Φ19.0-Φ20.0 | 450 | 118 |
| Remarks: it can't detecting aluminum foil and oxidizing agent , And other additional features should be customized, such as: infrared control, automatic rejecting device, foot switch, alarm indicator, control device, etc |
Features and Application:
Making the outside shape beautiful and makes the weight of the machine light to adopt the ABS
shell of good quality ; Equipped with the auto-alarm and Auto-return device ; it is featured by powerful
by powerful anti-magnetic Disturbance capability , high reliability and sensitivity . Be used in food ,
Medicine ,and toys detector of metal inside
MCD-F500QD food metal detector.pdf
MCD-F500QD User Manual.pdf
