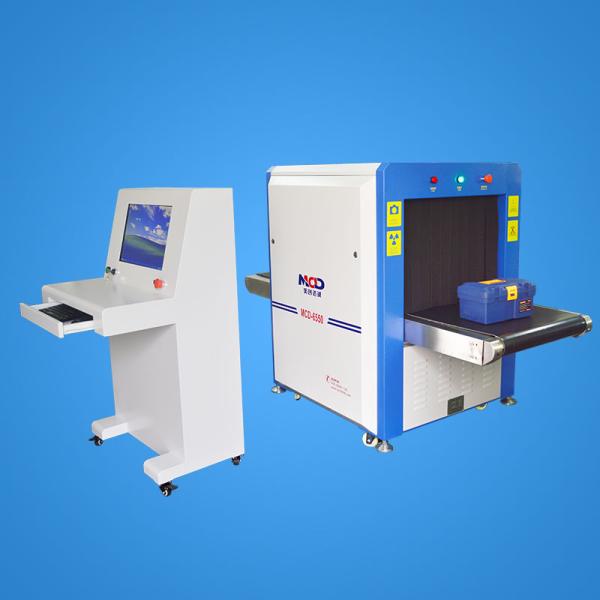

Subway Station Medium X Ray Baggage Scanner for Security Check

Brand Name : MCD

Model Number : MCD-6550

Certification : ISO , CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T , Western Union , L/C

Supply Ability : 300 set/month

Delivery Time : Normally within 5 working days

Packaging Details : Strong Wooden Case

Tunnel Size : 650(W)*500(H)mm

Conveyor Speed : 0.22m/s

Conveyor Max Load : 170kg

Dose per Inspection : <1.4uGy/h

Resolution : <0.0787mmMetal Wire

Penetrate resolution : Dia 0.254mm

Penetration : 34mm Steel

Generate direct : Upward

Anode Voltage : 100~160Kv

Anode power : 0.4 to 1.2mA

Contact Now

Subway Station Medium X Ray Baggage Scanner for Security Check

General Specification

  • Tunnel Size: 650(W)*500(H)mm
  • Conveyor Speed: 0.22m/s
  • Conveyor Max Load: 170kg
  • Dose per Inspection: <1.4uGy/h
  • Resolution: <0.0787mmMetal Wire
  • Spatial resolution Level:dia1.0mm , Vertical:dia1.0mm
  • Penetrate resolution:Dia 0.254mm
  • Penetration: 34mm Steel
  • Film Safety: Guarantee ISO1600 Film
  • X-ray Leakage: <0.05 uGy/h (at a distance of 5cm From external housing)

X-ray Generator

  • Generate direct: Upward
  • Generate angle: 80 degree
  • Anode Voltage: 100~160Kv
  • Anode power: 0.4 to 1.2mA
  • Cooling / Duty Cycle: Oil Cooling /100%

Image System

X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Detector: 2
Color display: full color
Image Processing: Edge enhancement, image strengthening,

image lightening,reducing darkening, image returning, image retrieval
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom:

1-9 Image regions, 2,4,8,16 Times Enlarge,

Whole screen continuous observation

Multi-energetic

distinguish objects:

 organic objects in orange,inorganic objects in blue, mixture in green
High-energy/low energy: switch from high energy to low energy

Installation Data

  • Operating Temperature/Humidity: 0℃～45℃/20%-95%(non-condensing)
  • Storage Temperature/Humidity: -26℃～60℃/20%-95%(non-condensing)
  • Operation Power:220AVC/(±10)50Hz±3Hz
  • Power Consumption:1.0KW(Max)
  • Noise: ＜65 dB

Feature and Application:

X-ray penetrate inspection, the object can be found within the metal structure, can display the naked eye

can not see where the liquid is also very obvious object display.Used in the factory testing of security

products and business units such as: electronic factories, shoe factories, toy factories, courts, railway

stations, and event bag, line security management package.
